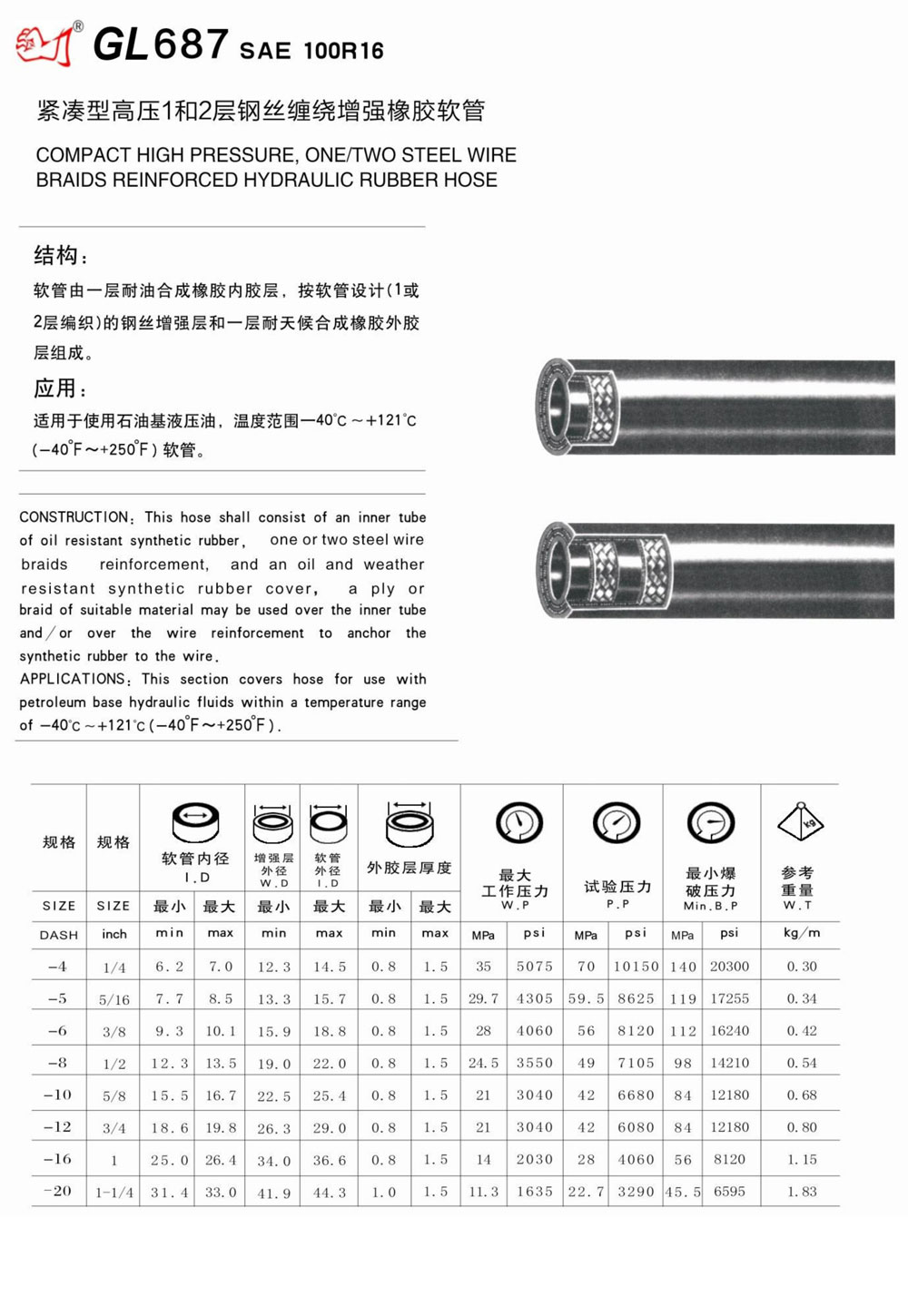

GL687 SAE 100R16 緊湊型高壓1和2鋼絲纏繞增強橡膠軟管
GL687 SAE 100R16
緊湊型高壓1和2層鋼絲纏繞增強橡膠軟管
緊;
COMPACT HIGH PRESSURE, ONE/TWO STEEL WIRE BRAIDS REINFORCED HYDRAULIC RUBBER HOSE
CO RUI
結構：
軟管由一層耐油合成橡膠內膠層，按軟管設計(1或 2層編織)的鋼絲増強層和一層耐天候合成橡膠外膠 層組成。
應用：
適用于使用石油基液壓油，溫度范圍一409?+1219 (-40°F ?+250°F)軟管。
2J

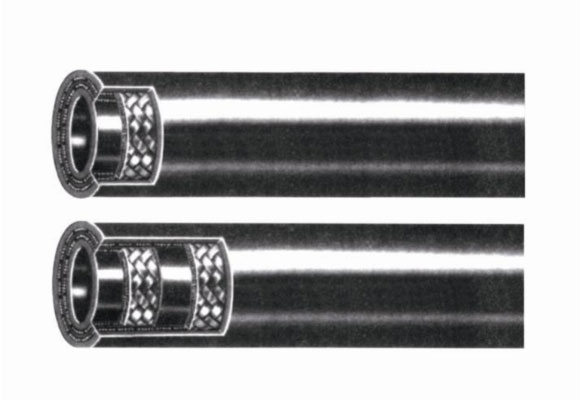

CONSTRUCTION： This hose shall consist of an inner tube of oil resistant synthetic rubber, one or two steel wire braids reinforcement, and an oil and weather
resista nt synthetic rubber cover, a ply or braid of suitable material may be used over the inner tube and / or over the wire reinforcement to anchor the synthetic rubber to the wire.
APPLICATIONS： This section covers hose for use with petroleum base hydraulic fluids within a temperature range of -4(Tc ?+121?c(-40°F ?+250°F).
